Bombas de circulación verticales en línea según norma DIN24255/EN733 para sistemas HVAC
La serie EIFEL EGM son bombas verticales en línea. Su principal característica es su estructura vertical, que reduce considerablemente el espacio de instalación. El eje del motor está conectado al eje de la bomba para asegurar la alineación entre la bomba y el motor.
Serie de productos :
EGM SeriesNorma aplicable :
EN733/DIN24255 standardCapacidades :
5~420m3/hCabezas :
8~150mDiámetro de entrada y salida: :
40mm~200mmVelocidad (r/min) :
1450 or 2900 rpm (50Hz) / 1750 or 3500 rpm (60Hz)Presión máxima de trabajo :
1.0 MPa standard; 1.6 MPa on requestTemperatura :
85℃Description & Features
The EIFEL EGM series features vertical in-line pumps distinguished primarily by their vertical structural design, which drastically minimizes installation space requirements. A key engineering innovation lies in the direct insertion of the motor shaft into the pump shaft, ensuring precise alignment between the pump and motor components. Compliant with IEC international standards, this pump series integrates standardized motors while offering modular assembly capabilities—specifically, the pump head can be independently assembled or disassembled for maintenance and configuration flexibility.

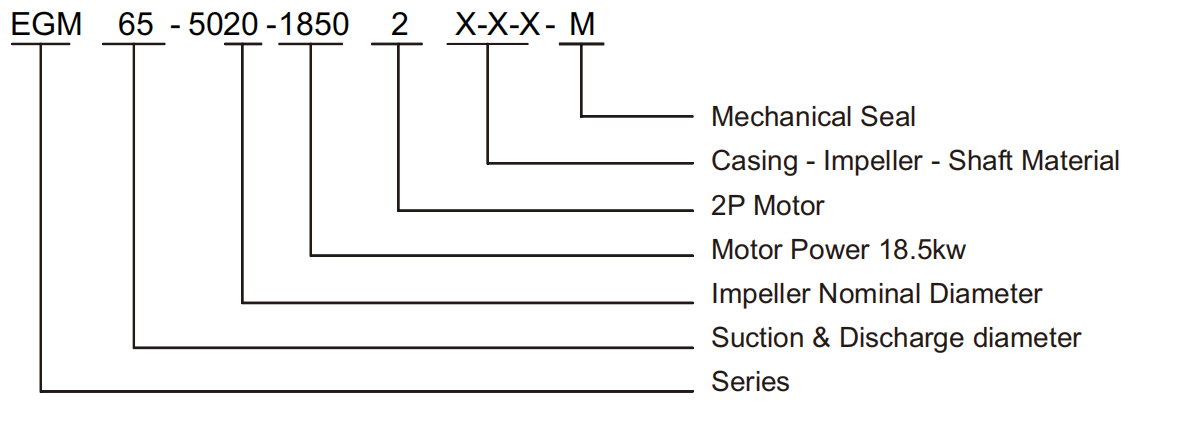

Model Instruction
Material Code
C: Cast Iron
Q: Ductile Iron
B: Brass
S: ASTM 420
45: ASTM 1045S
304: ASTM 304S
316: ASTM 316
M: Mechanical Seal
Design & Structure
| Design |
Performance referring to BS EN733/DIN24255 standard
|
| Structure | Vertical, Single-Stage, Single-Suction, Volute, Casing, In-line, Close-coupled |
| DN (mm) | 40~200 |
| Flange | DIN2501 PN16 GB / T17241.6 PN1.6 |
| Motor | IEC standard motor |
Material
| Part |
Standard Material
|
Options on request
|
| Casing |
Cast Iron
|
Ductile Iron
|
| Impeller |
Brass
|
Cast Iron /Bronze/ ASTM304(CF8) / ASTM316(CF8M
|
| Shaft |
ASTM420
|
ASTM304 / ASTM316 / ASTM1045
|
| Shaft Seal |
Mechanical Sea
|
Operating Data
| Flow Rate(Q) | 5~420m /h |
| Head(H) |
8~150m
|
| Speed | 1450 or 2900 rpm (50Hz) / 1750 or 3500 rpm (60Hz) |
| Max Temperature | 85℃ |
| Working Pressure | 1.0 MPa standard; 1.6 MPa on request |
| Conveying Medium |
Clean water or liquids similar to clean water in physical property
|
Applications
• Cold and Hot Water Circulation Pump
• Municipal water supply
• HVAC and Cooling Tower
• Booster Pump
• Pool and fountain water transfer
