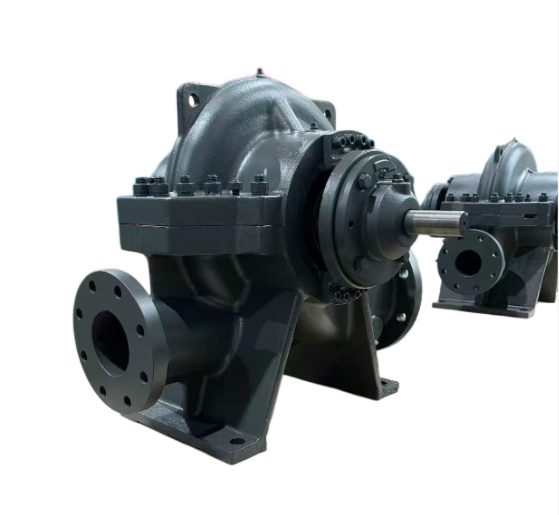

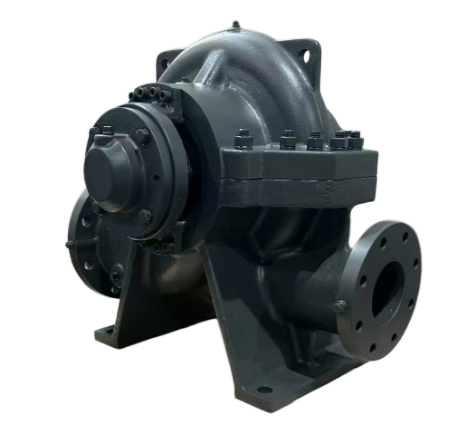

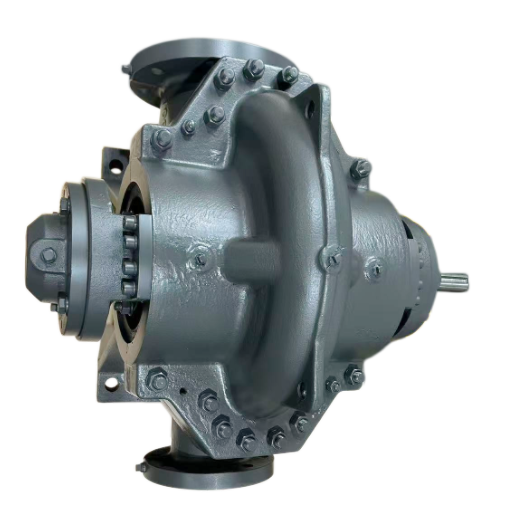

ODM/OEM Horizontal Double-Suction Split Casing Pump for HVAC system
These split casing pumps adopt a double-suction design. They feature large flow capacity, high efficiency, stable operation, low noise and long service life. Widely applicable to industrial plants, mines, municipal water supply, agricultural irrigation, HVAC systems and marine industries.
Serie de productos :
ES SeriesNorma aplicable :
GB/T5657-95, QT/FZEF 001-2014 StandardCapacidades :
36~3400m³/hCabezas :
8~190mDiámetro de entrada y salida: :
50~350mmVelocidad (r/min) :
1480 or 2980 rpm (50Hz) / 1780 or 3580 rpm (60Hz)Presión máxima de trabajo :
1.6MPa(standard); 2.5MPa(on request)Temperatura :
85~105℃High Flow Rate Double Suction Split Casing Water Pump
This pump is of high flow rate, high efficiency, stable operation, low noise and long service life, easy to install and maintain. Widely used in plant, mine, city water supply, irrigation, HVAC and vessel industry.
Model Instruction
Material Code
C: Cast Iron S304: ASTM 304
Q: Ductile Iron S316: ASTM 316
B: Brass Seal Type
S: ASTM 420 M: Mechanical Seal
45: ASTM 1045 P: Gland Packing
Application
Material
| Part | Standard Material | Option on Request |
| Casing | Cast Iron | Ductile Iron |
| Impeller | Brass | Cast Iron/ ASTM304(CF8) / ASTM316(CF8M) |
| Shaft | ASTM1045 | ASTM304 / ASTM316 / ASTM420 |
| Shaft Seal | Mechanical Seal | Gland Packing |
Design and Structure
Design: Performance referring to GB/T5657-95, Q/ FZEF 01-214 Standard
Structure: Single-Stage, Double-Suction, Split-Casing
DN (mm): 50~350
Flange: DIN2501 PN16 GB / T17241.6 PN1.6
Operation Data
| Flow Rate (Q) | 36~3400m3/h |
| Head (H) | 8~190m |
| Speed | 1480 or 2900 rpm (50Hz) / 1780 or 3580 rpm (60Hz） |
| Max Temperature | 85℃ (standard); 105℃ (on request) |
| Working Pressure | 1.6MPa (standard); 2.5MPa(on request) |
| Conveying Medium | Clean Water or liquids similar to clean water in physical property |
